This was created by dismantling and scanning a very old and yellowed original manual. The scans were then processed and cleaned up using Photoshop, and the results assembled into an Adobe Pdf file.
Where else are you going to find a manual for a Korg 770?
This manual consists of 14 Pages.
- Page 1: Major features
- Page 2: Fundamental Components

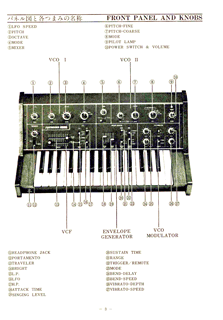

- Page 3: Front Panel & Knobs
- Page 4: Connections
- Page 5: VCO1
- Page 6: Waveforms/VCO2
- Page 7: VCF
- Page 8: Envelope
- Page 9: ADSR
- Page 10: Range/Trigger/Expand
- Page 11: VCO Modulator/Portamento
- Page 12: Block Diagram
- Page 13: Specifications
- Page 14: Rear Cover
This manual is provided as a PDF document, without an index.
